Kasco Home Series Diffused Aeration
Kasco Home Series Diffused Aeration
Couldn't load pickup availability
Kasco Home Series is a compact bottom-diffused aeration package for small residential ponds. A shore-mounted 1/4 HP compressor sends air through weighted tubing to one or two single-loop diffusers on the pond bottom, creating continuous bottom-to-top water movement without placing electricity in the water.
DA1 or DA2?
| Pond size | DA1, 1 diffuser | DA2, 2 diffusers |
|---|---|---|
| 1/4 acre | 6 to 8 ft deep | 3 to 6 ft deep |
| 1/2 acre | 9 to 12 ft deep | 6 to 8 ft deep |
| 1 acre | 13 to 20 ft deep | 9 to 12 ft deep |
| 2 acres | Not recommended | 13 to 20 ft deep |
This is Kasco's starting chart for simple pond shapes. Irregular shorelines, coves, islands, shallow shelves, heavy organic demand, and long tubing routes can require a different layout. Send LakeTech a depth map or pond dimensions when the site is not a simple basin.
Compare the four packages
| System | Voltage | Diffusers | Weighted tubing |
|---|---|---|---|
| DA1 | 120V | 1 single-loop diffuser | 1 x 100 ft roll, 3/8 in |
| DAH1 | 208-240V | 1 single-loop diffuser | 1 x 100 ft roll, 3/8 in |
| DA2 | 120V | 2 single-loop diffusers | 2 x 100 ft rolls, 3/8 in |
| DAH2 | 208-240V | 2 single-loop diffusers | 2 x 100 ft rolls, 3/8 in |

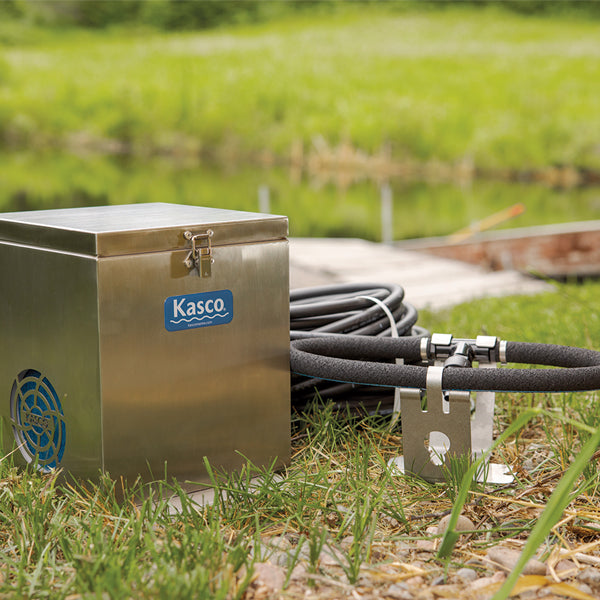

What each package includes

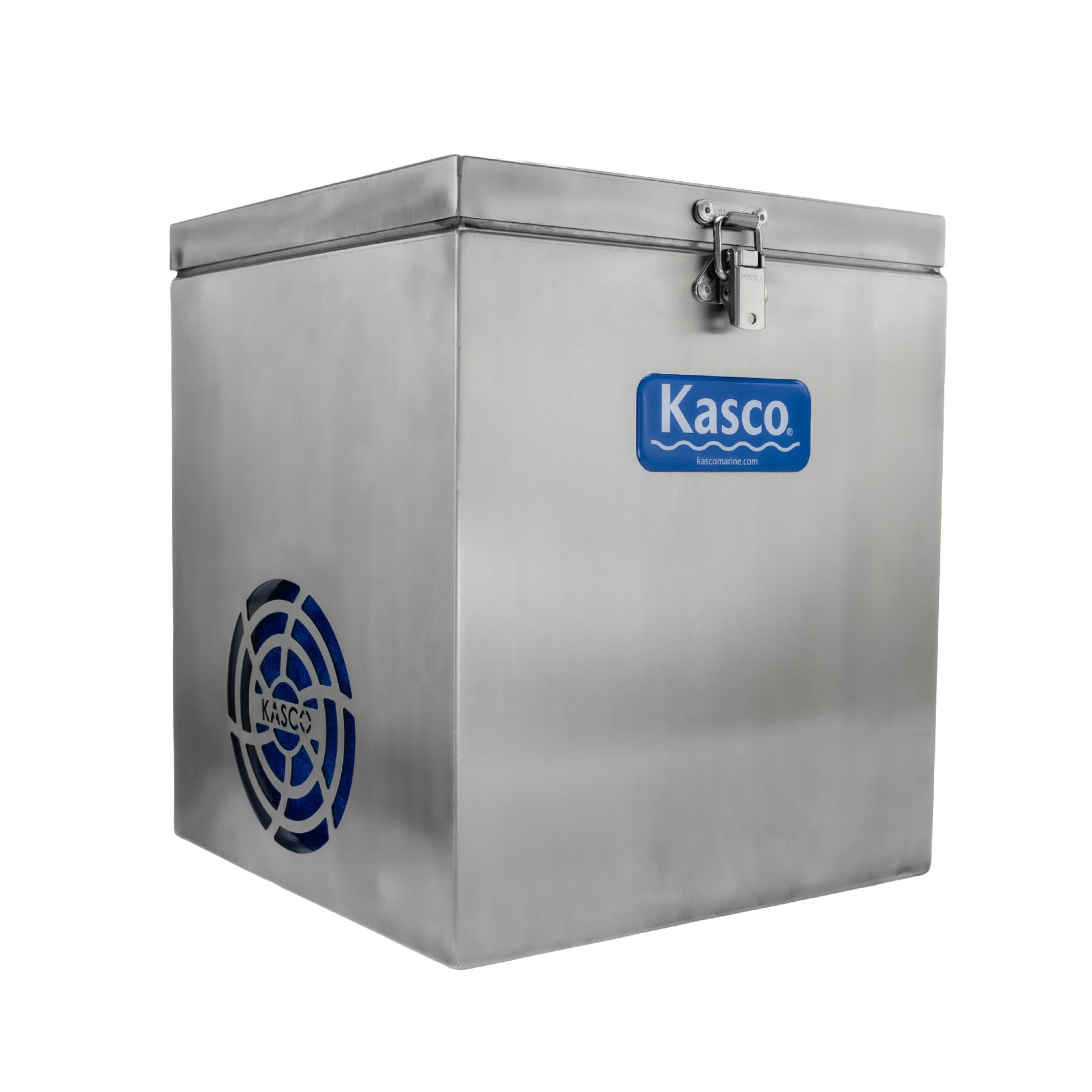

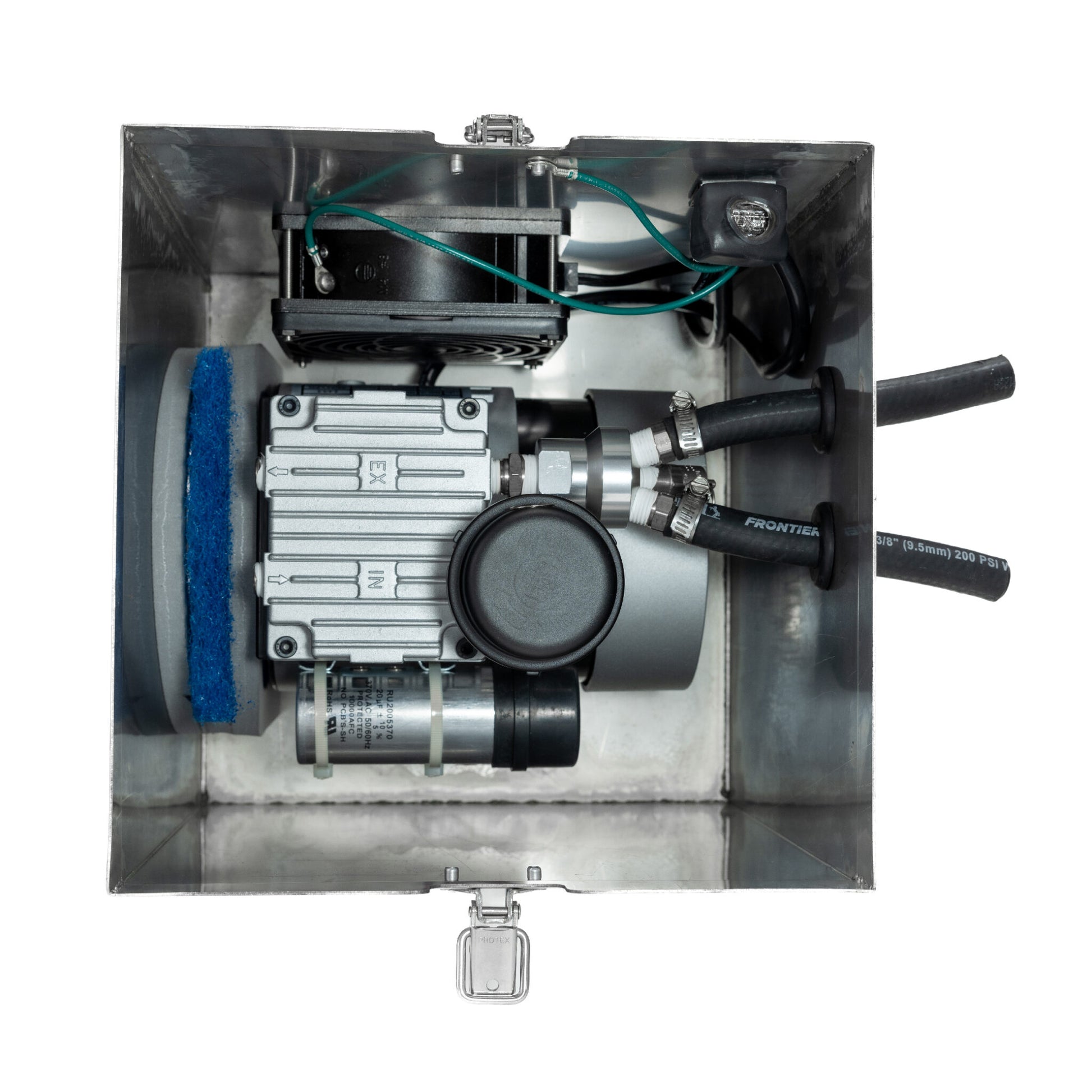

- One 1/4 HP compressor in a stainless steel outdoor cabinet

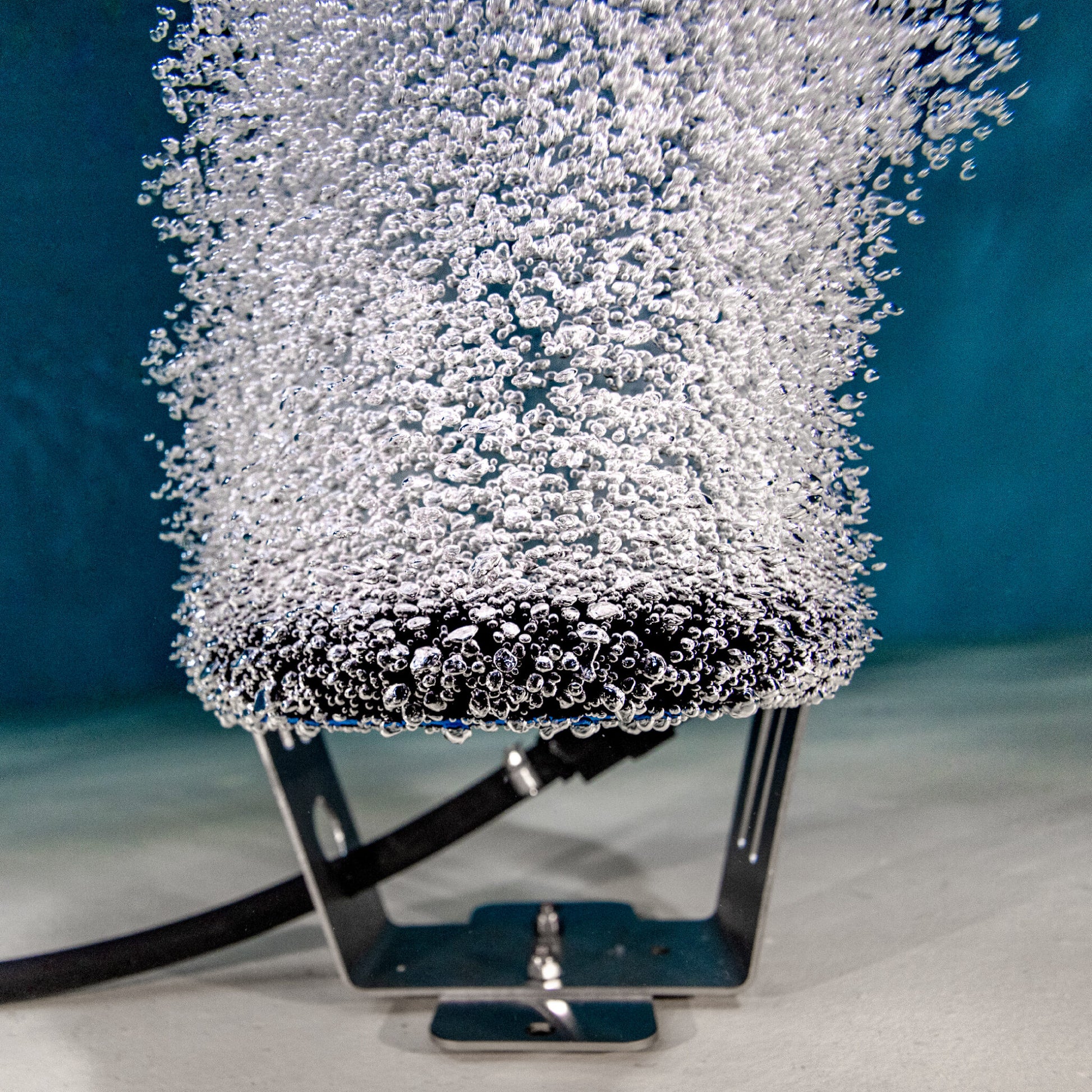

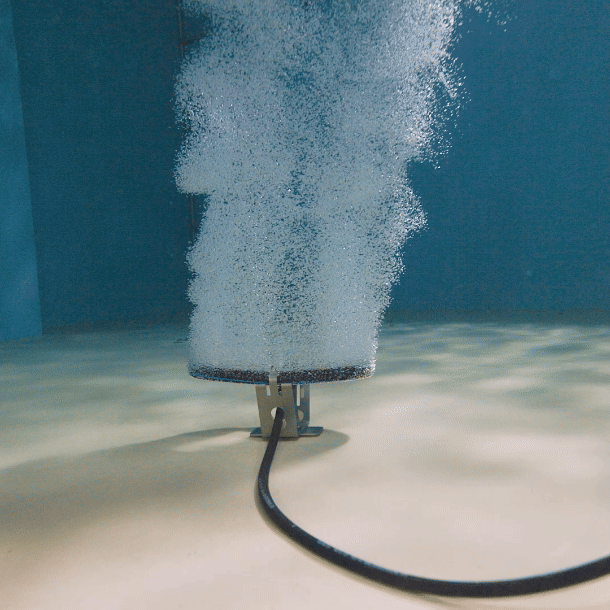

- One or two single-loop diffuser assemblies
- One 100 ft roll of SureSink 3/8 in weighted tubing for each diffuser
- Ground-mount cabinet configuration

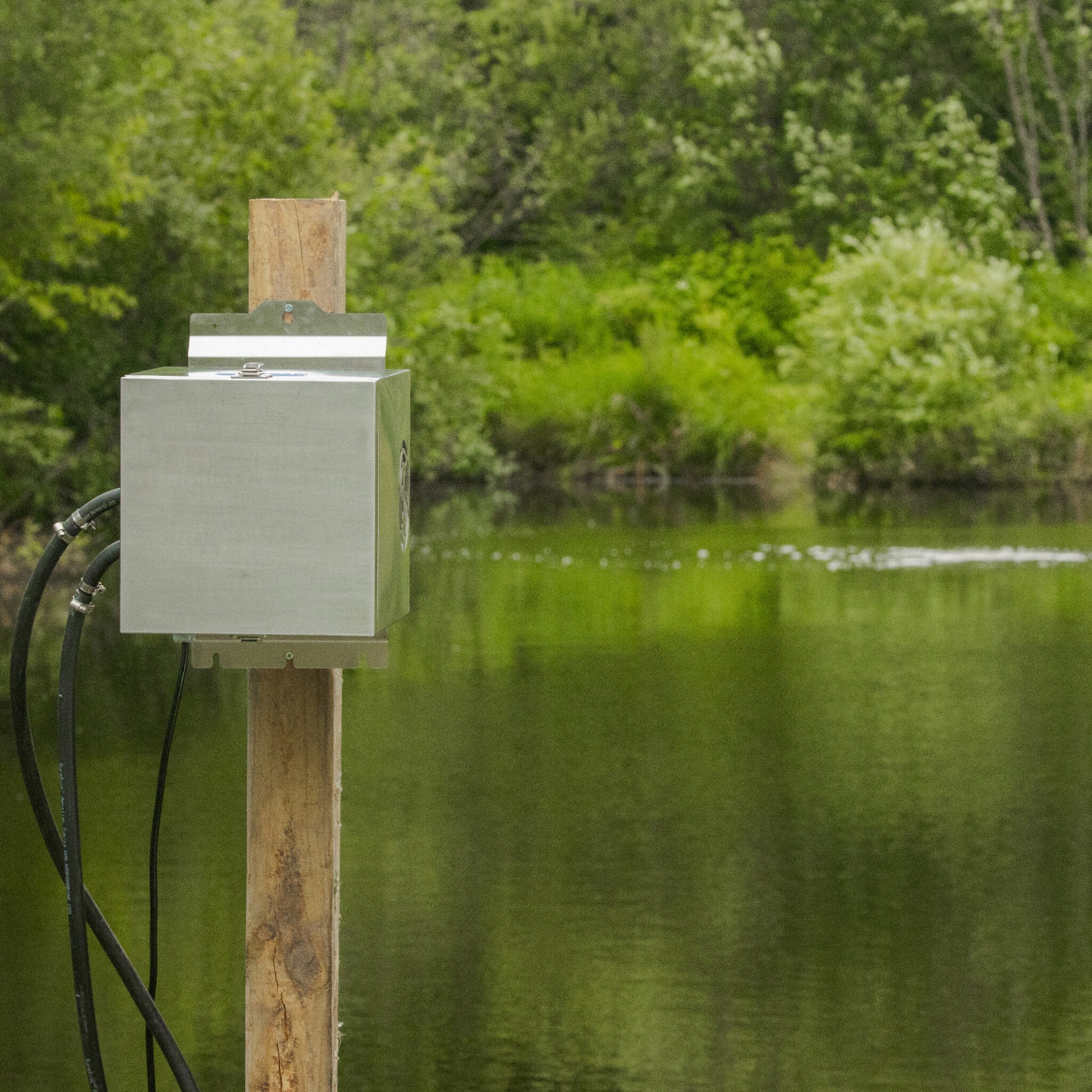

The optional vertical-structure mounting bracket, Kasco part 774440, is sold separately.
Home Series or RobustAire?
- Choose Home Series for a relatively simple backyard pond under 2 acres when one or two diffuser stations and the included 3/8 in tubing fit the layout.
- Compare RobustAire for larger or more complex waterbodies, three or more diffuser stations, longer or higher-flow tubing layouts, or an AireGuard cabinet.
- Aeration supports circulation and oxygen distribution. It does not directly kill weeds or algae, and severely stratified ponds may require a gradual startup schedule.
Warranty and planning
- Lifetime manufacturer warranty on the diffuser
- 15-year manufacturer warranty on weighted tubing
- Two-year manufacturer warranty on the cabinet, compressor, and external parts
- Confirm voltage, cabinet location, ventilation, tubing routes, diffuser placement, and qualified electrical installation before ordering.

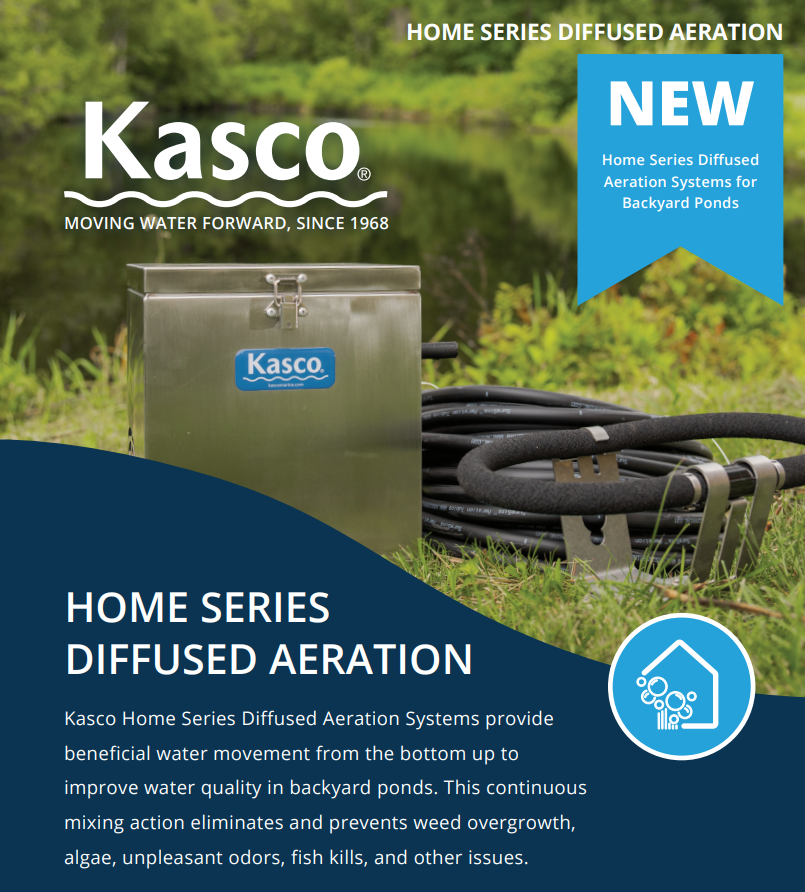

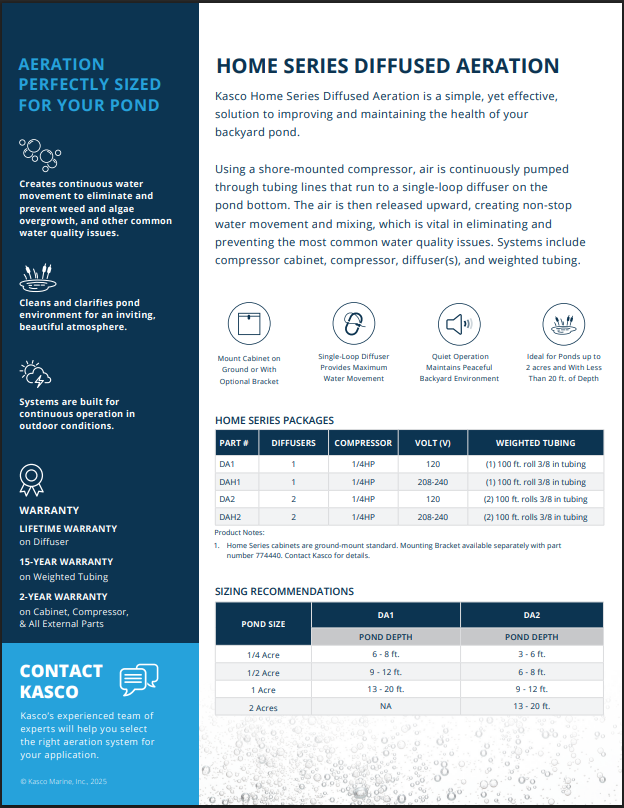

Review the official Kasco Home Series page, download the 2026 product sheet, or ask LakeTech to review your pond layout.
