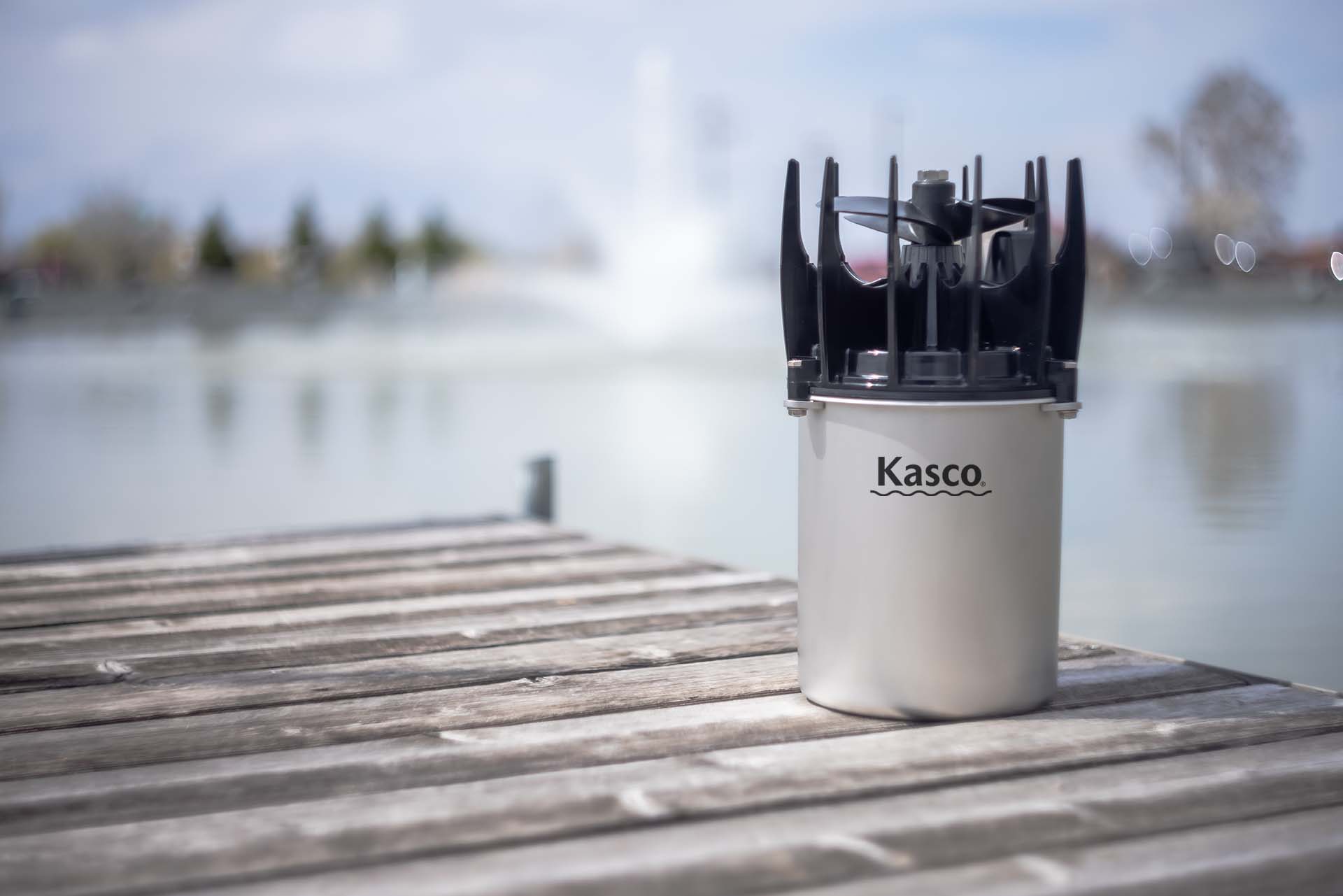

Kasco AquatiClear 1HP Circulator

The Kasco AquatiClear 1 HP circulator creates a directed current for shoreline areas, coves, canals, and other locations where moving water is the goal. Choose the voltage, mounting package, and power-cord length that match the site. This listing currently offers 50 ft and 100 ft cords.

Choose the right configuration

• 120V, single phase: 9.1 operating amps. Kasco lists the C-25 as the optional control panel.
• 208-240V, single phase: 4.5 operating amps. Kasco lists the C-220 as the optional control panel.
• Unit only: Includes the 1 HP AquatiClear motor unit and the selected power cord. A mount is not included.
• Horizontal float package: Holds the unit near the surface and uses three mooring ropes to direct flow.

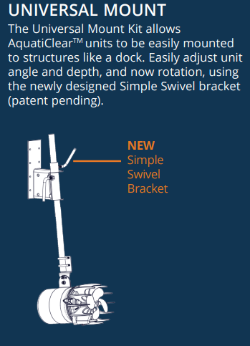

• Universal mount package: Attaches to a dock or similar structure and allows angle, depth, and rotation adjustments. The customer supplies the mounting pipe.

Control panel note: Every voltage option in this listing is labeled without a control panel. Contact LakeTech before ordering if the project needs a compatible C-25 or C-220 panel.

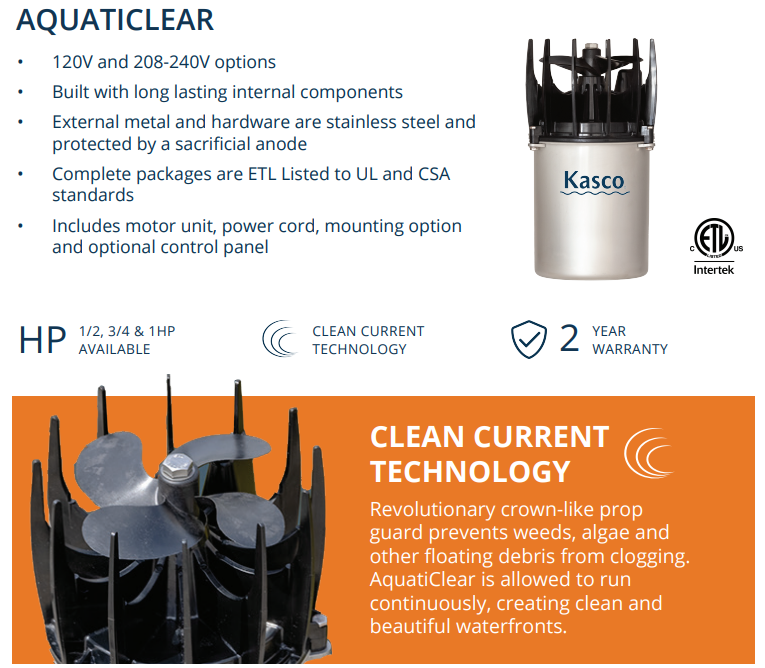

Key specifications

• 1 HP motor
• 41 lb thrust
• 120V or 208-240V, single phase
• 50 ft and 100 ft power-cord options sold on this page
• Two-year Kasco unit warranty
• Complete packages are ETL Listed to UL and CSA standards, according to Kasco

Before installation

• Without the separate Shallow Water Install Kit, Kasco instructs installers to place AquatiClear at least 1.5 ft below the surface to prevent audible ventilation.
• Do not direct the water flow downward, because it can disturb bottom sediment.
• Confirm voltage, cord length, mounting method, depth, electrical protection, and local requirements before ordering.
• Kasco offers additional manufacturer-listed cord lengths for some configurations. Contact LakeTech if 50 ft or 100 ft does not reach the planned electrical connection.

Read the 2026 Kasco AquatiClear specifications or ask LakeTech to review the configuration.
