Aqua TROLL 800 Multiparameter Sonde
Aqua TROLL 800 Multiparameter Sonde
Build your lake monitoring sonde
Configure your Aqua TROLL 800
Select venting, pressure, six sensor ports, the wiper port, and an optional maintenance plan. This configuration is limited to sensors used for freshwater lake management.
Slot 1 requires temperature, with optional conductivity.
Choose all options to see the complete configuration.
Shopify records the base sonde and each priced component together under one configuration ID.
Share the product, quantity, site, and delivery details you already have.

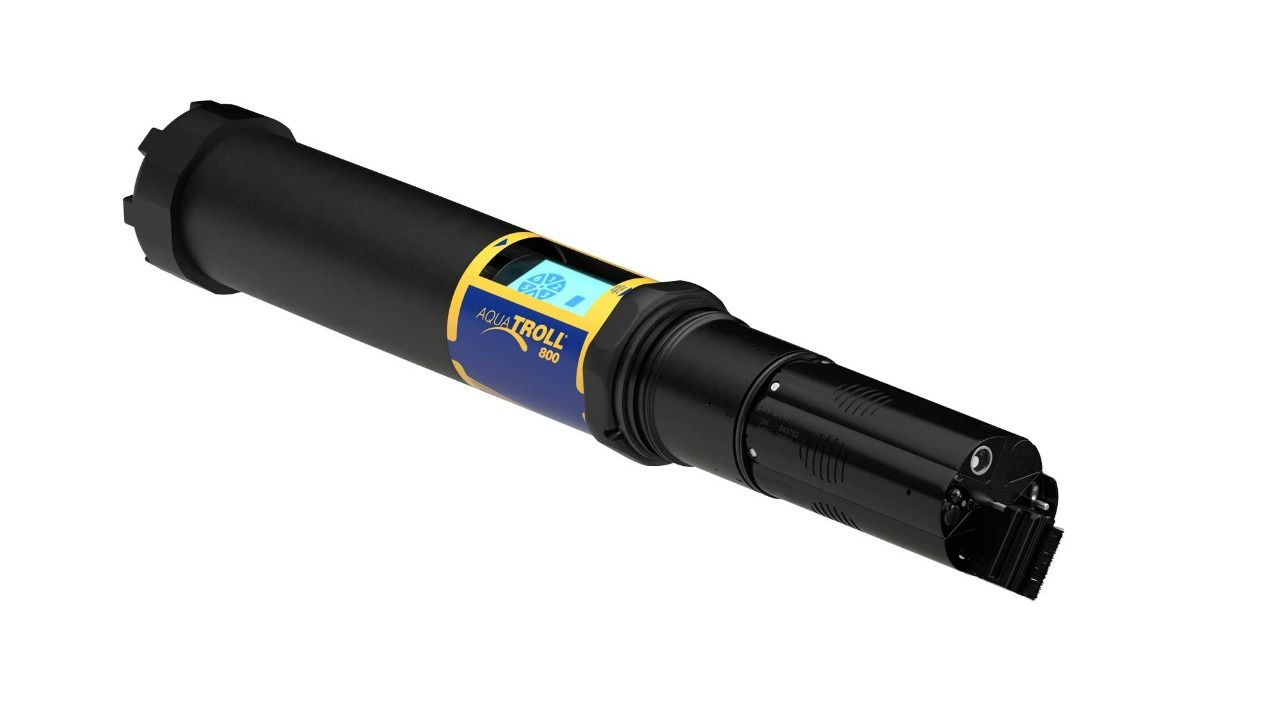

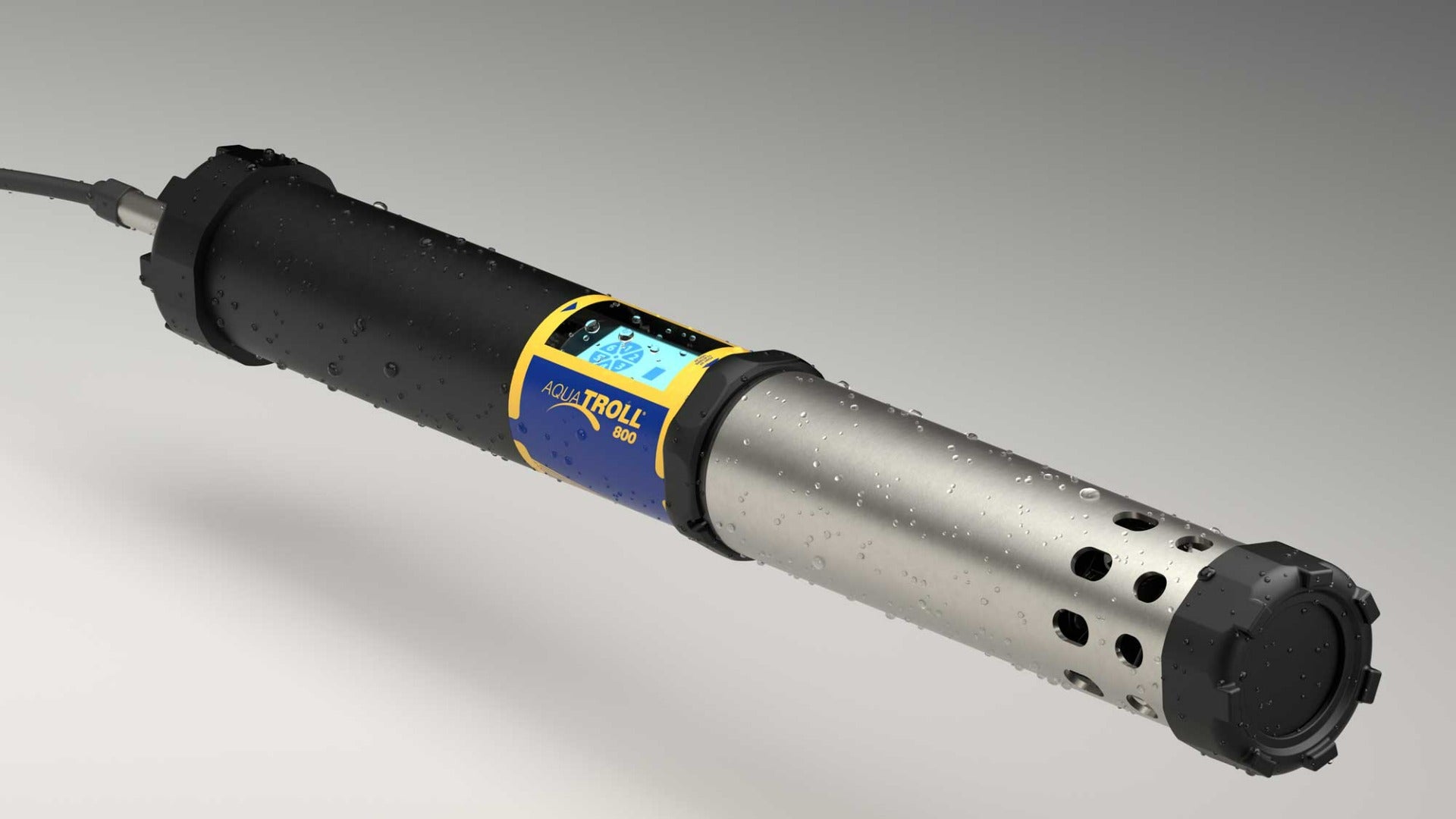

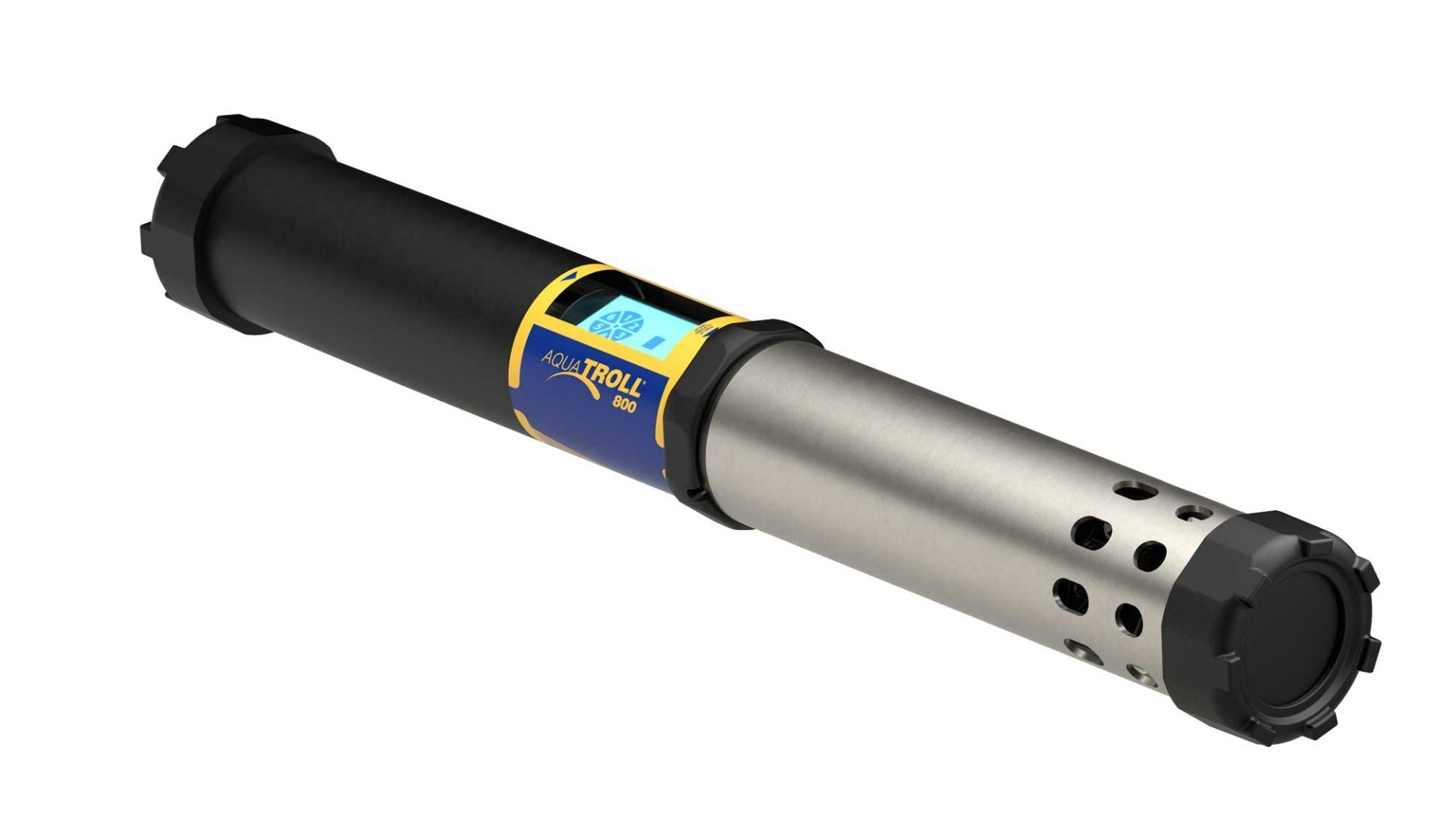

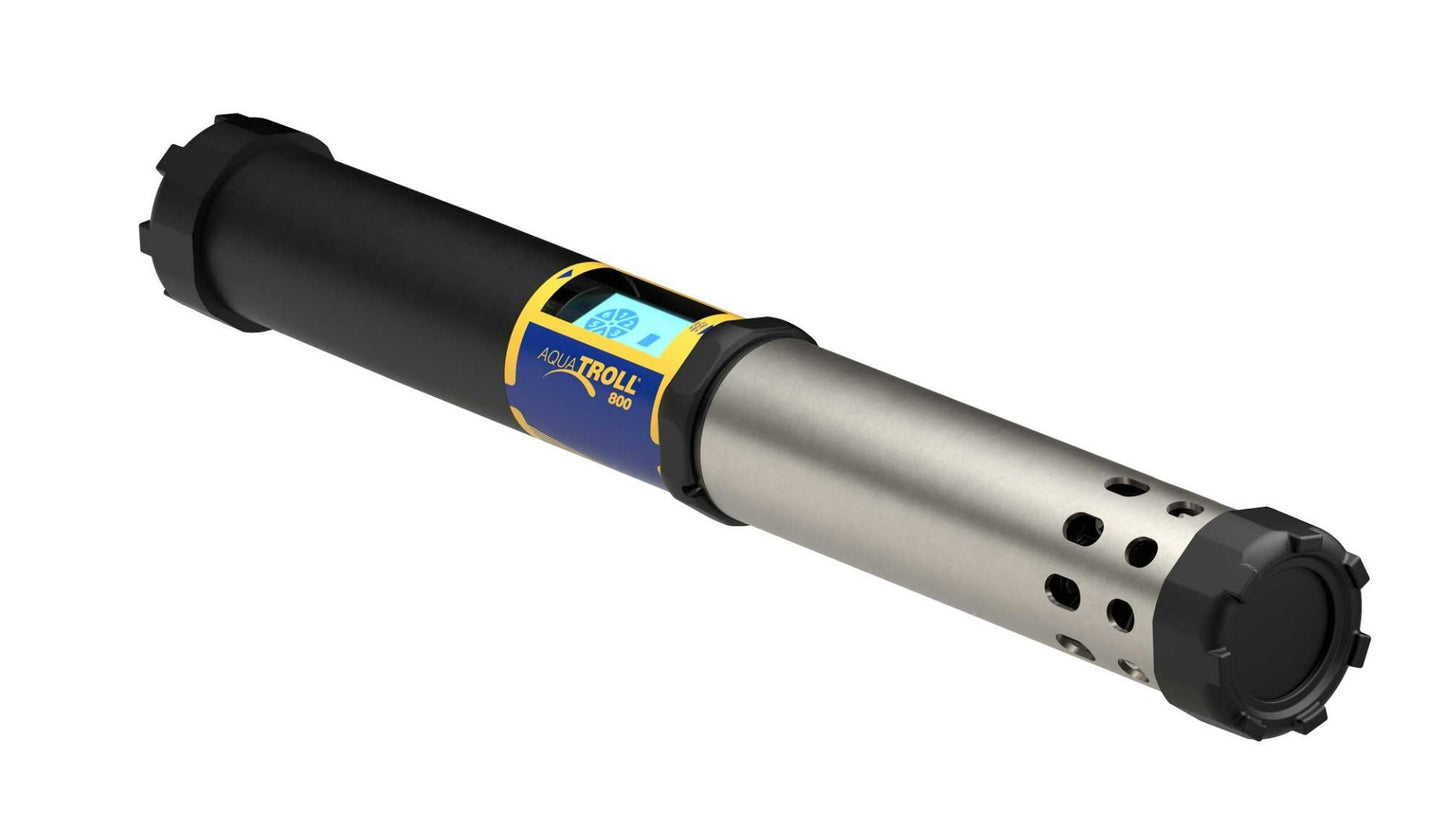

The Aqua TROLL 800 is a fully customizable seven-port multiparameter sonde with capacity for six interchangeable sensors plus an antifouling wiper. It is ideal for short-term or long-term freshwater lake deployments.
In addition to fast-response sensors, built-in error prevention, and mechanical antifouling, the Aqua TROLL 800 adds internal logging and runs on two alkaline D batteries for continuous deployment without external power. A micro SD card records backup logs to safeguard your data. Choose vented or non-vented construction, pressure or non-pressure measurement, and lake-management sensors for temperature, conductivity, pH/ORP, Rugged Dissolved Oxygen (RDO), turbidity, chlorophyll a, phycocyanin (BGA-PC), FDOM, chloride, and nitrate.
Why it works
- Standalone logging. Internal logging plus micro SD backup runs unattended on two D batteries, no external power needed.

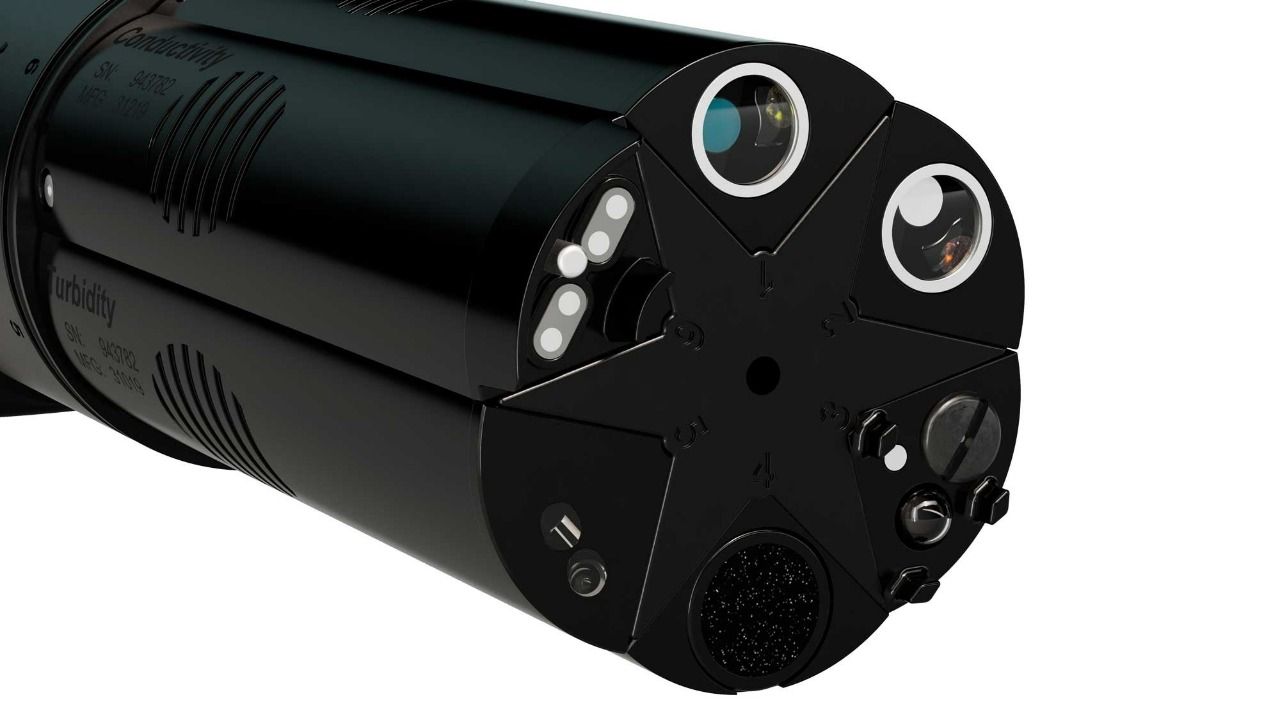

- Six sensors at once. Seven ports run six interchangeable smart sensors plus a wiper.
- 3D factory calibration. Multi-point factory calibration on every sensor for linear response across the full range.
- Low-maintenance deployment. Sub-3-inch mechanical antifouling and 9+ month battery life in fresh water.
- Mini calibration cup. Rinses and calibrates with just 100 mL of solution, roughly 5x cheaper than traditional methods.
- Built-in error protection. Spring-loaded screws, slip-clutch wiper, port-agnostic smart sensors, wet-mate connectors, and anti-roll bumpers.
Specifications
| Manufacturer | In-Situ |
|---|---|
| Model | Aqua TROLL 800 |
| Sensor ports | 7 (6 interchangeable sensors plus wiper) |
| Lake-management sensor options | Temperature, conductivity, pH/ORP, RDO dissolved oxygen, turbidity, chlorophyll a, BGA-PC, FDOM, chloride, nitrate |
| Logging | Internal logging with micro SD backup |
| Power | 2 alkaline D batteries, 9+ month battery life |
| Calibration volume | 100 mL mini calibration cup |
| Venting and pressure | Vented or non-vented; pressure or non-pressure |

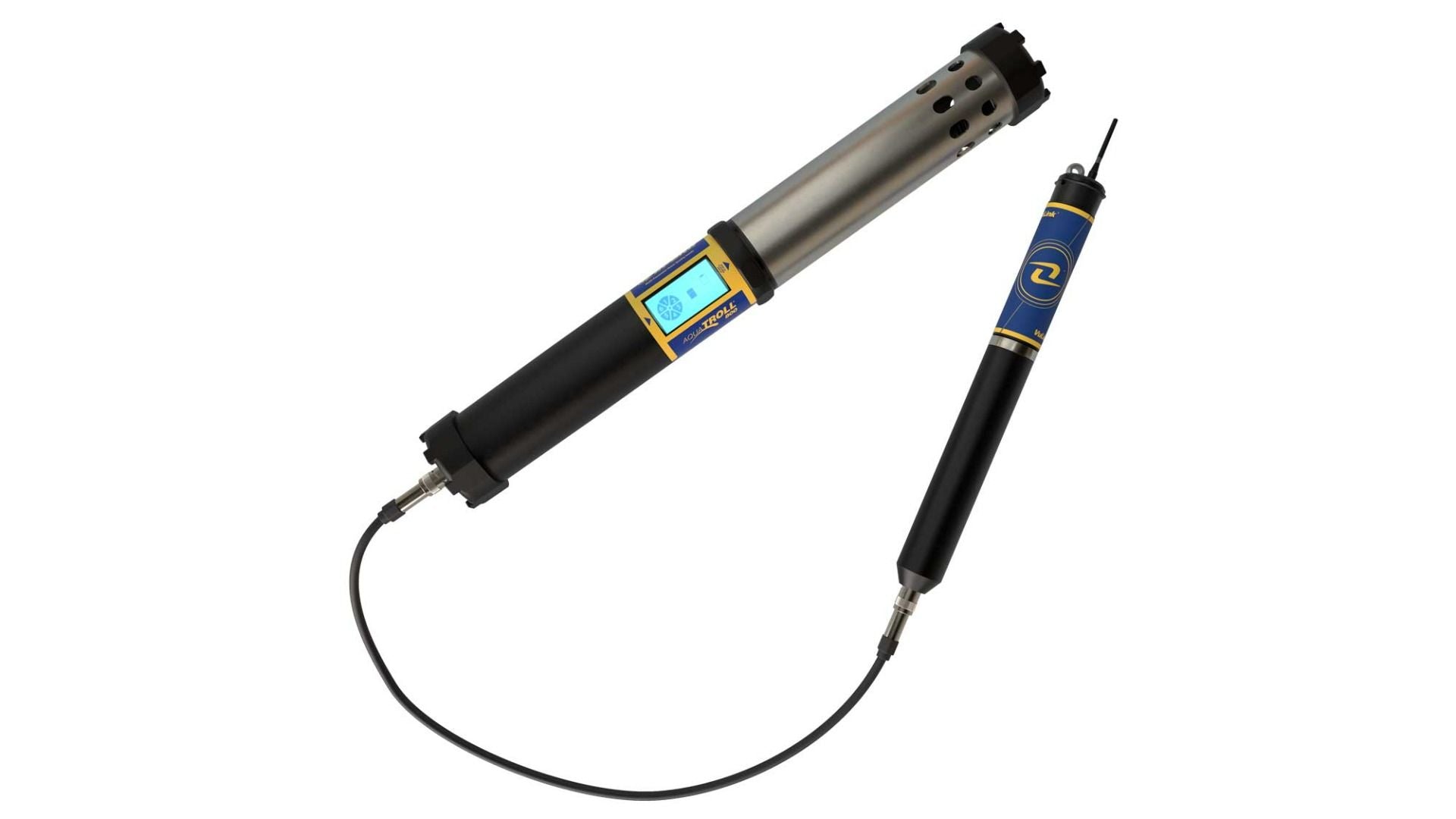

| Data and control | VuSitu mobile app; VuLink and HydroVu compatible |

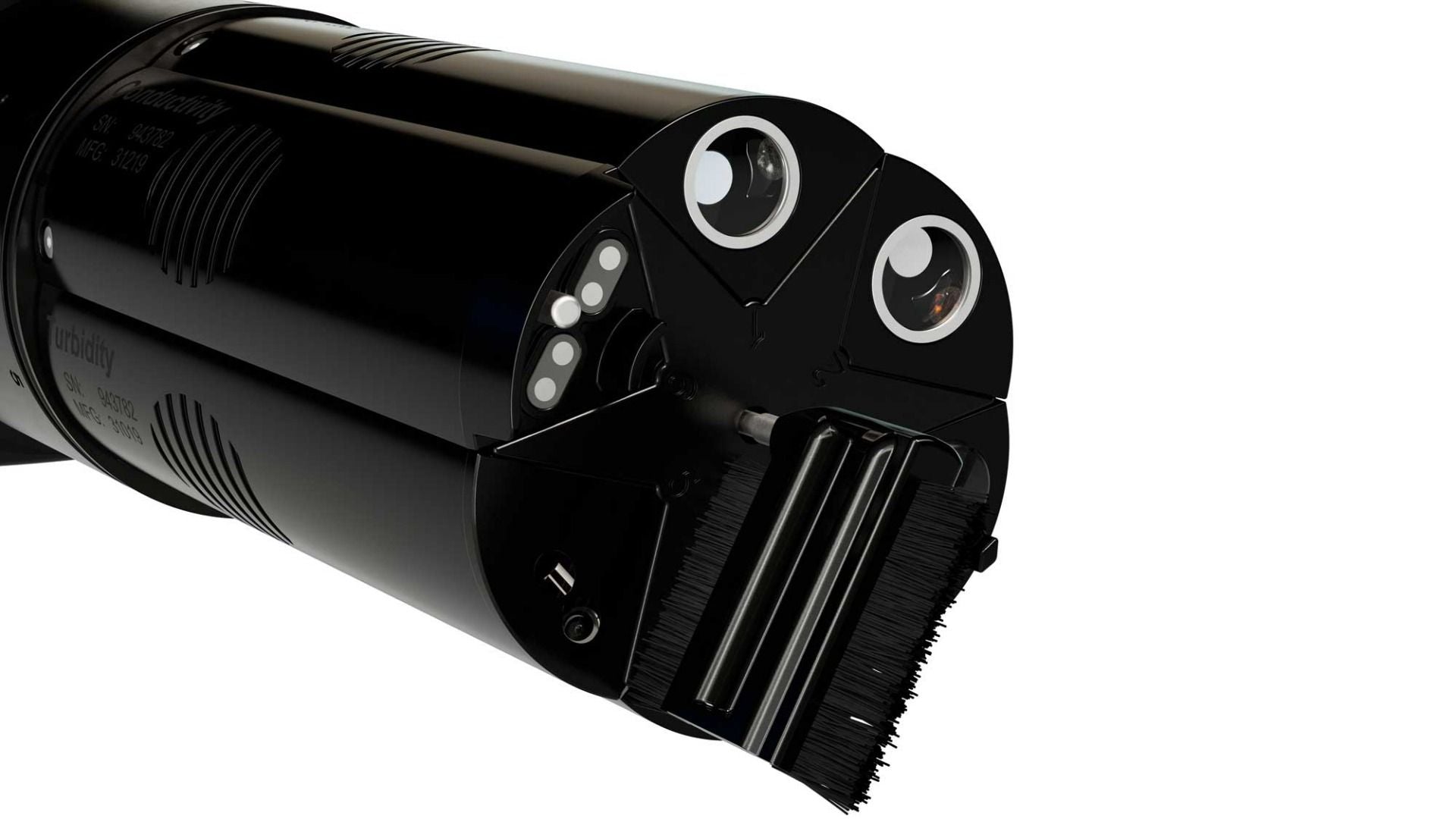

| Antifouling | Mechanical wiper, sub-3-inch |
