Kasco
Kasco VFX Series Fountain
Kasco VFX Series Fountain
Couldn't load pickup availability
Share the product, quantity, site, and delivery details you already have.

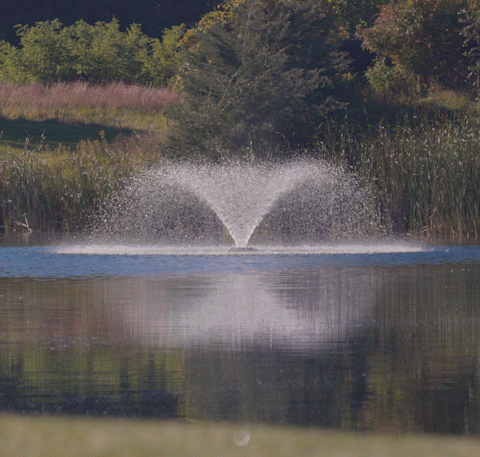

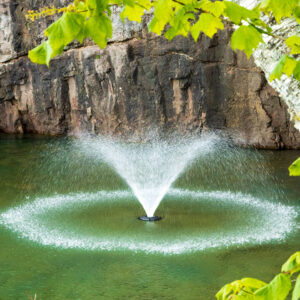

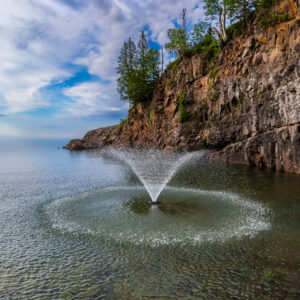

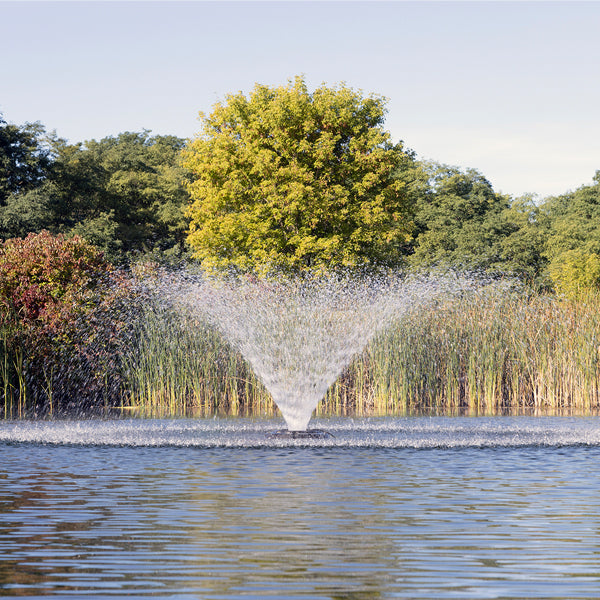

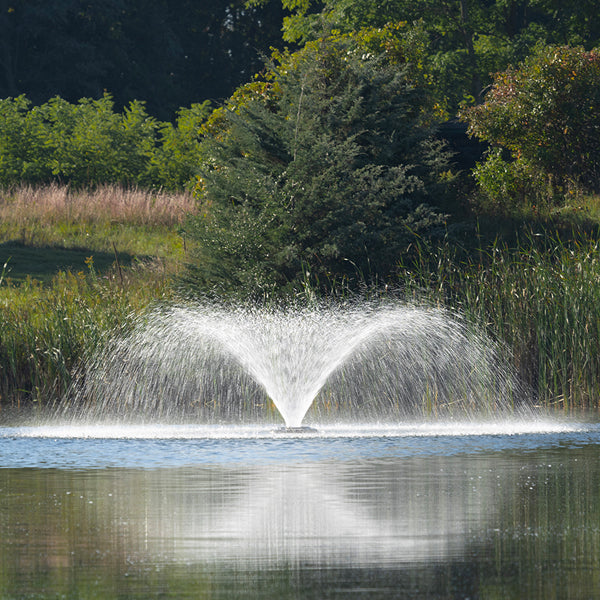

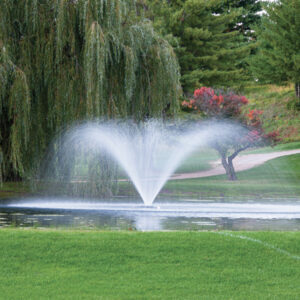

The Kasco VFX Series combines a classic V-shaped display with high-volume surface aeration. This LakeTech listing offers 1 HP, 2 HP, and 5 HP single-phase packages. Choose horsepower, voltage, and cord length from the available combinations.
Compare the listed VFX sizes
| Size | Voltage | Operating amps | Minimum depth | Display height x width | Unit warranty |
|---|---|---|---|---|---|
| 1 HP | 120V | 11.3 | 19 in | 8 x 26 ft | 2 years |
| 1 HP | 208-240V | 5.7 | 19 in | 8 x 26 ft | 2 years |
| 2 HP | 208-240V | 11 | 20 in | 8 x 32 ft | 3 years |
| 5 HP | 208-240V | 20 | 26 in | 9 x 34 ft | 3 years |
Display dimensions are manufacturer specifications under typical conditions. Wind, water level, voltage, and installation can change the visible pattern.
What complete corded packages include

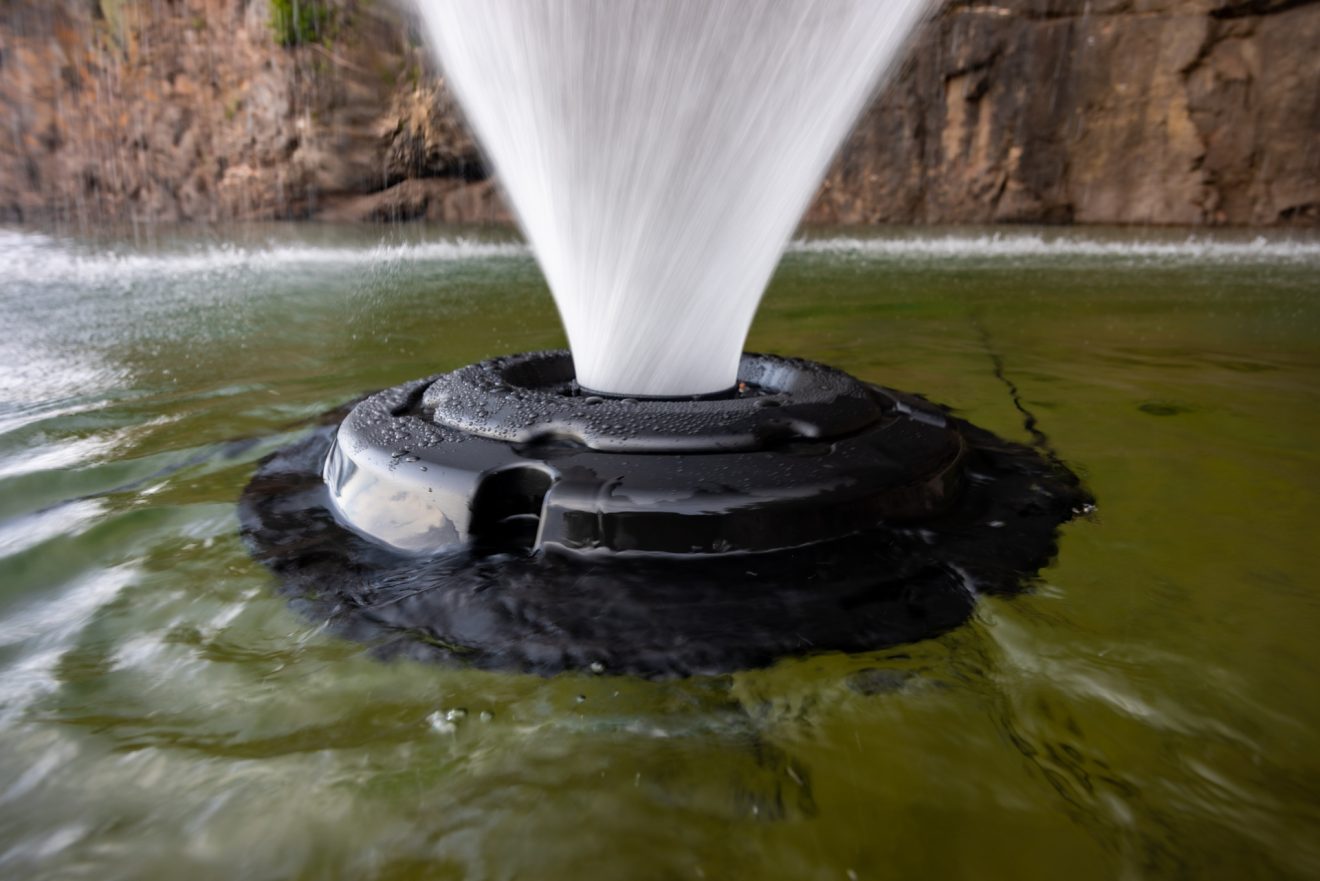

- VFX motor unit and float
- Bottom screen and mooring lines
- Selected power-cord length
- Human-rated GFCI-protected control panel matched to the listed voltage and horsepower
WaterGlow lighting is optional and sold separately. Confirm fixture count, cord length, and control compatibility before adding lights.
Control panel guidance
- 1 HP, 120V packages use the Kasco C-25 panel.
- 1 HP and 2 HP, 208-240V single-phase packages use the C-85 panel.
- 5 HP, 208-240V single-phase packages use the C-95 panel.
Stub-only configurations require review before purchase. Contact LakeTech to confirm the intended connection, control panel, disconnect, and installation requirements.
Before ordering
- Confirm pond dimensions and minimum operating depth at the planned fountain location.
- Confirm available voltage, electrical service, cord route, and local code requirements with a qualified electrician.
- Plan secure mooring and allow safe shore access for seasonal service.
- Never enter the water while electrical equipment is connected or operating.
- Kasco also manufactures 1/2 HP and 3/4 HP VFX models. Contact LakeTech if the listed sizes do not fit the site.
Review the manufacturer VFX specifications, read the 2026 Kasco product catalog, or ask LakeTech to review fountain sizing.
